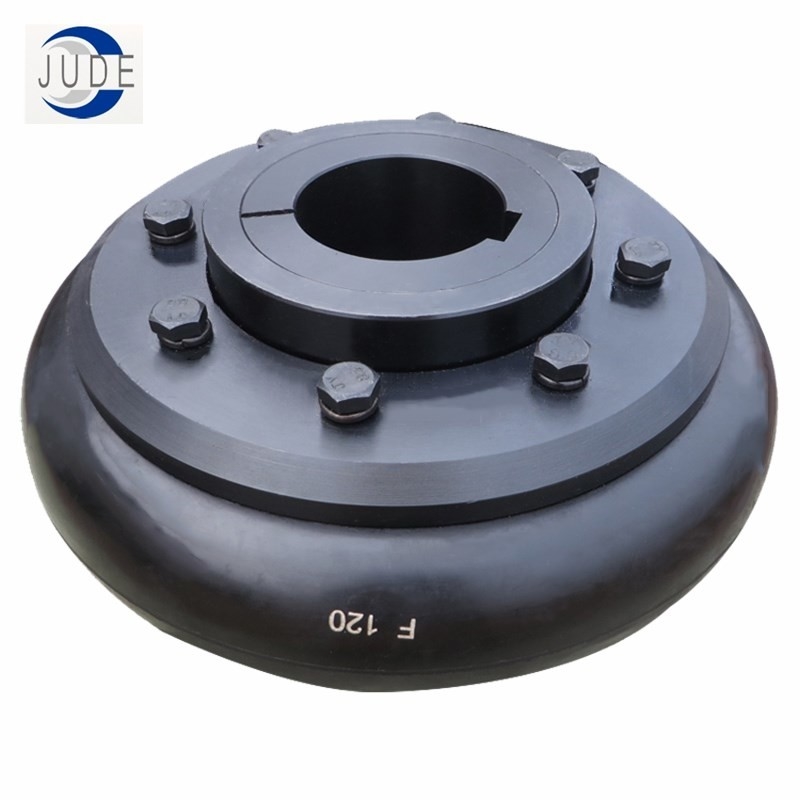

Fenner Fenaflex Fenner Fenaflex Flexible Tyre Flex Coupling Temperature Compensation

Place of Origin:China
Brand Name:Purple Horn
Certification:CE、ISO
Model Number:F Tyre Coupling
Minimum Order Quantity:1
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Product Details
Highlight:

Flexible Fenaflex Tyre Coupling

,

F90 Fenaflex Tyre Coupling

,

Fenner Tyre Coupling F110
Standard Or Nonstandard: Standard
Surface Treatment: Electrostatic Spraying
The Radial Displacement: 0.2~0.6mm
Flexible Or Rigid: Flexible
Material: 45# Steel
Product Name: Sprockets For Simplex, Duplex And Triplex Chain
Body Material: Steel
Application: Machinery, Textile, Mining, Food, Wine, Electric Vehicles And Other Industries
Product Description

European High Quality steel stock bore f tyre flexible fenaflex tyre coupling and fenner tyre coupling Tyre Coupling, type F040,F050,F060,F070,F080,F090,F100,F110,F120,F140,F160,F180,F200,F220,F250

Product Description

In order to suit the varying needs of our clients, we are providing them an excellent array of Tyre Coupling. It is manufactured with superior-grade raw material and acclaimed by the clients for its quality in sync with the international standards. Offered coupling comprises a rubber tyre which joins two different metal hubs: first one on the driving shaft while the another one on the driven shaft.

Features:

  • No lubrication is needed
  • Optimum torque transmission
  • Corrosion resistance
  • Abrasion resistance
  • Can be easily accomplished
  • Tyre elements are easy to replace without affecting the alignment of the installation



Material Steel, Rubber
process Machined, Forged
Heat treatment High frequency quenching heat treatment, hardened teeth
Surface treatment color painting, or customer requirement
Performance High precision, high wear resistance, low noise, smooth and steady, high strength
Model number F040,F050,F060,F070,F080,F090,F100,F110,F120,F140,F160,F180,F200,F220,F250
Payment,minimum order and delivery T/T ,LC, Delivery time is Negotiation
Packaging Wooden case or customer requirement.




Fenner Fenaflex Fenner Fenaflex Flexible Tyre Flex Coupling Temperature Compensation 0





Size Type Bush No   L E A C D F S Weight
Steel Steel
mm inch
F40 B —— 30 1 1/8" 33 22 104 82 —— —— —— 11
F 1008 25 1"
H 1008 25 1"
F50 B —— 38 1 1/2" 45 32 133 100 79 —— —— 12.5
F 1210 32 1 1/4" 38 25
H 1210 32 1 1/4"
F60 B —— 45 1 3/4" 55 38 165 125 70 —— —— 16.5
F 1610 42 1 5/8" 42 25 103
H 1610 42 1 5/8"
F70 B —— 50 2" 47 35 187 142 80 50 13 11.5
F 2012 50 2" 44 32
H 1610 42 1 5/8" 37 25
F80 B —— 60 2 3/8" 55 42 211 165 98 54 16 12.5
F 2517 60 2 1/2" 58 45
H 2012 50 2" 45 32
F90 B —— 75 3" 63.5 49 235 188 108 60 16 13.5
F 2517 60 2 1/2" 58.5 45
H 2517 60 2 1/2"
F100 B —— 80 3 1/8" 70.5 56 254 216 120 62 16 13.5
F 3020 75 3" 64.5 51 125
H 2517 60 2 1/2" 58.5 45 113
F110 B —— 90 3 1/2" 75.5 63 279 233 128 62 16 12.5
F 3020 75 3" 63.5 51 134
H 3020 75 3"
F120 B —— 100 4" 84.5 70 314 264 140 67 16 14.5
F 3525 100 4" 79.5 65 144
H 3020 75 3" 65.5 51
F140 B —— 125 5" 110.5 94 359 311 178 73 17 16
F 3525 100 4" 81.5 65
H 3525 100 4"
F160 B —— 140 5 1/2" 117 120 402 345 187 78 19 15
F 4030 115 4 1/2" 92 77 197
H 4030 115 4 1/2"
F180 B —— 150 6" 137 114 470 394 205 94 19 23
F 4535 125 5" 112 89
H 4535 125 5"
F200 B —— 150 6" 138 114 508 429 205 103 19 24
F 4535 125 5" 113 89
H 4535 125 5"
F220 B —— 160 6 1/4" 154.5 127 562 474 223 118 20 27.5
F 5040 125 5" 129.5 102
H 5040 125 5"
F250 B —— 190 7 1/2" 161.5 132 628 532 254 125 20 29.5

Fenner Fenaflex Fenner Fenaflex Flexible Tyre Flex Coupling Temperature Compensation 1



Shipping and Packaging

Fenner Fenaflex Fenner Fenaflex Flexible Tyre Flex Coupling Temperature Compensation 2
