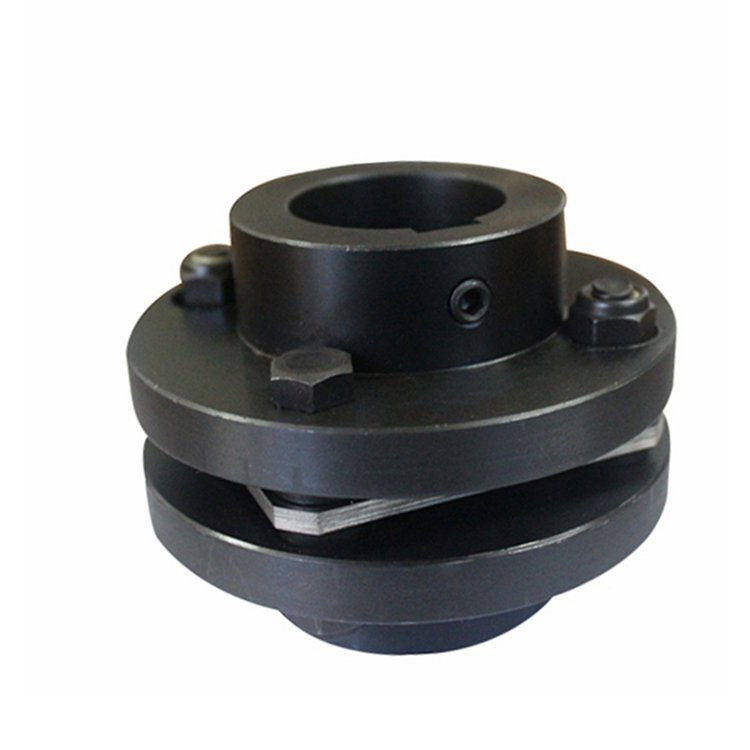

Acid Resistance Steel Flexible Diaphragm Coupling / Double Disc Coupling

Diaphragm coupling details
Several sets of diaphragms (stainless steel sheets) are staggeredly connected with the two half-couplings. Each set of diaphragms is made up of several stacks, and the diaphragms are divided into connecting rods and whole shapes of different shapes. The diaphragm coupling relies on the elastic deformation of the diaphragm to compensate the relative displacement of the two coupled shafts. It is a high-performance flexible coupling of metal strong components. It does not need oil, and has a compact structure, high strength and long service life. , No rotation gap, not affected by temperature and oil pollution. It has the characteristics of acid resistance, alkali resistance and corrosion resistance. It is suitable for high-speed, high-speed, and corrosive media working conditions.

Surface treatment: anti-rust treatment

Advantages of diaphragm couplings
1. It has obvious shock absorption effect, no noise and no wear.
2. Adapt to work in high temperature and harsh environment
3. High transmission efficiency, up to 99.86%.
4, simple structure, light weight, small size, convenient assembly and disassembly. It can be assembled and disassembled without moving the machine (refers to the type with intermediate shaft), without lubrication.
5, can accurately transfer speed, no slippage in operation, can be used for transmission of precision machinery

        Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

        Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

        The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.

Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2:Do you provide samples ? is it free or extra ?

A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.

Q3: How long is your delivery time?

A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.

Q4:How long is your warranty?

A: Our Warranty is 12 month.

Q5 :Do you have inspection procedures for coupling ?

A:100% self-inspection before packing

Q6. What’s your payment?

A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.
