JMII Standard Flexible Precision JMII Standard Encoder Shaft

Place of Origin:China
Brand Name:Purple Horn
Certification:CE、ISO
Model Number:JMII
Minimum Order Quantity:1
Supply Ability:1000 Set/Sets per Month
Product Details
Highlight:

Standard Flexible Encoder Coupling

,

ISO 9001 Flexible Encoder Coupling

,

Shaft Metal Disc Coupling
Applicable Industries: Manufacturing Plant, Machinery Repair Shops
Structure: Disc
Flexible Or Rigid: Flexible
Standard Or Nonstandard: Standard
Material: Steel
Product Name: JMII Flexible Shaft Disc Coupling For Encoder
Shaft Hole: 14-340
Dimensions: 80-820(mm)
Norminal Torque: 40-180000(N.m)
Surface Treatment: Carburizing, Blackening, Electroplating, Quenching.
Heat Treatment: High Frequency Quenching Heat Treatment
Color: Custom Requirement
MOQ: 1set
Feature: Long Operating Life
Weight: 0.9-55 Kg
Port: Tianjin
Product Description

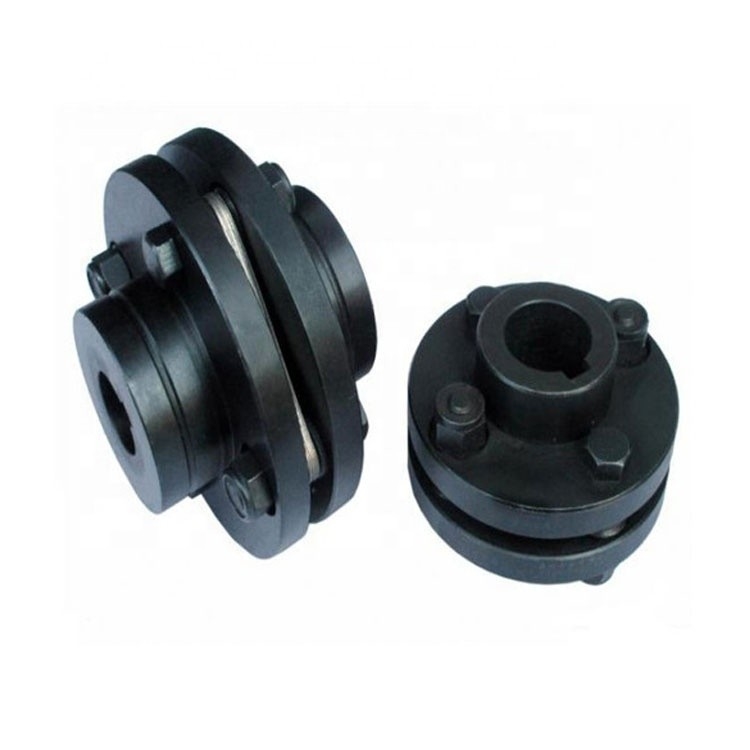

JMII Flexible Shaft Disc Coupling For Encoder



Product Description

characteristics of JM Series Diaphragm Coupling:


1. Compensation two axis misalignment of the ability, and tooth type coupling can be much more than a double angle displacement, radial displacement of the small, flexible, allowing a certain axial, radial and angular displacement.
2. Obvious damping effect, no noise, no wear and tear.
3. High transmission efficiency, up to 99.86%. Especially suitable for medium and high speed high power transmission.
4. Adapt to high temperature (-80+300) and harsh environment, and can be in shock, vibration, safety and dynamic conditions.
5. Simple structure, light weight, small size, convenient assembly and disassembly. Without moving the machine can be disassembled (with intermediate type), no need of lubrication.
6. Accurately convey the rotational speed, the operation has not turned bad, can be used for the transmission of precision machinery.


JM series diaphragm flexible coupling is widely used in machinery and equipment industry, metallurgy, mines, petroleum, chemical, electric power, shipbuilding, lifting transport, textile, light industry, agricultural machinery, printing machinery and water pump, fan, etc. in the transmission of power machine.

JMII Standard Flexible Precision JMII Standard Encoder Shaft 0

JMII Type Diaphragm/disc industrial Coupling Performance Data
Size Torque Peak Torque Max Speed Bore dia Bore LEN D DI t Torsional Stiffness Weight Rotation al inertia
Tn /N.m Tmax /N.m nmax r/min d1, d2 JI Y RECOMMEND x10 Kg kg.m2
L L
JMI 1 40 63 10700 14-28 27-62 35 80 39 8±0.2 0.37 0.9 (I (1( 1( 1H
JMII 2 63 100 9300 20-38 38-82 40 92 53   0.45 1.4 0.0011
JMII 3 100 200 8400 25-45 44-112 45 102 63   0.56 2.1 0.002
JMII 4 250 400 6700 30-55 60-112 55 128 77 ll±0.3 0.81 4.2 0.006
JMII 5 500 800 5900 35-65 60-142 65 145 91   1.2 6.4 0.012
JMII 6 800 1250 5100 40-75 84-142 75 168 105 14±0.3 1.42 9.6 0.024
JMII 7 1000 2000 4750 45-80 84-172 80 180 112 15±0.4 1.9 12.5 0.0365
JMII 8 1600 3150 4300 50-85 84-172   200 120   2.35 15.5 0.057
JMII 9 2500 4000 4200 55-85 84-172   205   20±0.4 2.7 16.5 0.065
JMII 10 3150 5000 4000 55-90 84-172 90 215 128   3.02 19.5 0.083
JMII 11 4000 6300 3650 60-95 107-172 100 235 132 23±0.5 3.46 25 0.131
JMII 12 5000 8000 3400 60-100 107-212   250 145   3.67 30 0.174
JMII 13 6300 10000 3200 63-110 107-212 110 270 155   5.2 36 0.239
JMII 14 8000 12500 2850 65-110 107-212 115 300 162 27±0.6 7.8 45 0.38
JMII 15 10000 16000 2700 70-125 107-212 125 320 176   8.43 55 0.5
JMII 16 12500 20000 2450 75-130 107-252 140 350 186 32±0.7 10.23 75 0.85
JMII 17 16000 25000 2300 80-140 132-252 145 370 203   10.97 85 1.1
JMII 18 20000 31500 2150 90-160 132-302 165 400 230   13.07 115 1.65
JMII 19 25000 40000 1950 100-170 167-302 175 440 245 38±0.9 14.26 150 2.69
JMII 20 31500 50000 1850 110-180 167-302 185 460 260   22.13 170 3.28
JMII 21 35500 56000 1800 120-200 167-282 200 480 280   23.7 200 4.28
JMII 22 40000 63000 1700 130-200 202-352 210 500 295   24.6 230 5.18
JMII 23 50000 80000 1600 140-220 202-352 220 540 310 44±1 29.71 275 7.7
JMII 24 63000 100000 1450 150-240 202-410 240 600 335 50±1.2 32.64 380 9.3
JMII 25 80000 125000 1400 160-250 242-352 255 620 350 50±1.2 37.69 410 15.3
JMII 26 90000 140000 1300 180-260 242-410 275 660 385   50.43 510 20.9
JMII 27 112000 180000 1200 190-280 282-470 295 720 410 60±1.4 71.51 620 32.4
JMII 28 140000 200000 1150 220-300 282-470 300 740 420   93.37 680 36
JMII 29 160000 224000 1100 240-320 330-470 320 770 450   114.53 780 43.9
JMII 30 180000 280000 1050 250-340 330-550 350 820 490   130.76 950 60.5
