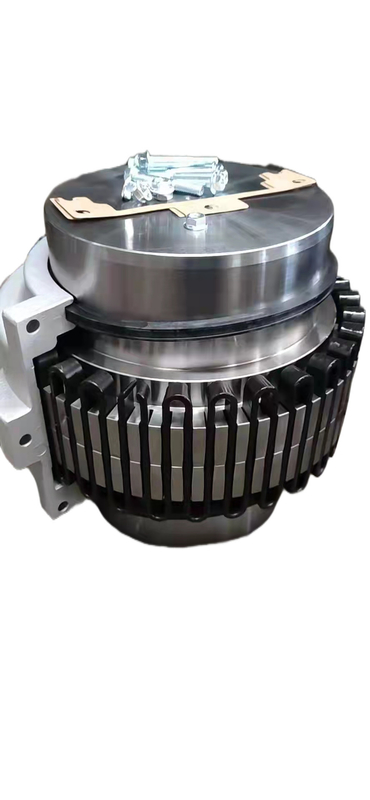

T10 T20 Flex Taper Grid Coupling Standard 45# Steel ISO9001 Certified
Features of Taper grid coupling T10 T20 :
1. Horizontal split cover design,ideal for limited space
2. Allows easy access to the grid spring
3. Well suited for reversing applications
4. Lightweight die-cast aluminum grid cover
5. Designed for ease of maintenance and grid spring replacement
6. High tensile grid springs ensure superior coupling performance and longer coupling life
7. Interchangeable with industry standard grid couplings
| Size | Torque Tn N.m | Speed [n] rpm | Bore d mm | Length | Total | L2 mm | D mm | D0 mm | Gap | Weight without bore kg | Inertia | Lubricating oil |
| L mm | LO mm | C mm | kg.m2 | Kg | ||||||||
| 1020T10 | 52 | 4500 | 28 | 47.6 | 98.2 | 66.7 | 97 | － | 3 | 1.95 | 0.0014 | 0.027 |
| 1030T10 | 149 | 4500 | 35 | 47.6 | 98.2 | 68.3 | 105.7 | － | 3 | 2.59 | 0.0022 | 0.041 |
| 1040T10 | 249 | 4500 | 42 | 50.8 | 104.6 | 69.9 | 114.3 | － | 3 | 3.36 | 0.0033 | 0.054 |
| 1050T10 | 435 | 4500 | 50 | 60.3 | 123.6 | 80.9 | 135.1 | － | 3 | 5.44 | 0.0073 | 0.068 |
| 1060T10 | 684 | 4350 | 56 | 63.5 | 130 | 93.5 | 157.8 | － | 3 | 7.26 | 0.0119 | 0.036 |
| 1070T10 | 994 | 4125 | 65 | 76.2 | 155.4 | 96.8 | 158.8 | － | 3 | 10.44 | 0.0185 | 0.113 |
| 1080T10 | 2050 | 3600 | 80 | 88.9 | 180.8 | 115.6 | 190.5 | － | 3 | 17.7 | 0.0451 | 0.172 |
| 1090T10 | 3730 | 3600 | 95 | 98.4 | 199.8 | 122.2 | 211.1 | － | 3 | 25.4 | 0.0787 | 0.254 |
| 1100T10 | 6280 | 2440 | 110 | 120.6 | 246.2 | 155.4 | 251 | － | 5 | 42.2 | 0.178 | 0.426 |
| 1110T10 | 9320 | 2250 | 120 | 127 | 259 | 161.5 | 269.7 | － | 5 | 54.4 | 0.27 | 0.508 |
| 1120T10 | 13700 | 2025 | 140 | 149.2 | 304.4 | 191.5 | 307.8 | － | 6 | 81.2 | 0.514 | 0.735 |
| 1130T10 | 19900 | 1800 | 170 | 161.9 | 329.8 | 195.1 | 345.9 | － | 6 | 121 | 0.959 | 0.908 |
| 1140T10 | 28600 | 1650 | 200 | 184.2 | 374.4 | 201.2 | 384 | － | 6 | 178 | 1.85 | 1.135 |
| 1150T10 | 39800 | 1500 | 215 | 182.9 | 371.8 | 271.5 | 453.1 | 391.2 | 6 | 227 | 3.49 | 1.952 |
| 1160T10 | 55900 | 1350 | 240 | 198.1 | 402.2 | 278.4 | 501.9 | 436.9 | 6 | 309 | 5.82 | 2.815 |
| 1170T10 | 74600 | 1225 | 280 | 215.9 | 437.8 | 307.3 | 566.9 | 487.2 | 6 | 448 | 10.4 | 3.496 |
| 1180T10 | 103000 | 1100 | 300 | 238.8 | 483.6 | 321.1 | 629.9 | 554.7 | 6 | 619 | 18.3 | 3.768 |
| 1190T10 | 137000 | 1050 | 335 | 259.1 | 524.2 | 325.1 | 675.6 | 607.8 | 6 | 776 | 26.1 | 4.4 |
| 1200T10 | 186000 | 900 | 360 | 279.4 | 564.8 | 355.6 | 756.9 | 660.4 | 6 | 1057 | 43.5 | 5.63 |
| 1210T10 | 249000 | 820 | 390 | 301.8 | 622.6 | 431.8 | 844.6 | 750.8 | 13 | 1424 | 75.5 | 10.53 |
| 1220T10 | 336000 | 730 | 420 | 325.1 | 663.2 | 490.2 | 920.8 | 822.2 | 13 | 1785 | 113 | 16.07 |
| 1230T10 | 435000 | 680 | 450 | 345.4 | 703.8 | 546.1 | 1003.3 | 904.7 | 13 | 2267 | 175 | 24.06 |
| 1240T10 | 559000 | 630 | 480 | 368.3 | 749.6 | 647.7 | 1087.1 | － | 13 | 2950 | 339 | 33.82 |
| 1250T10 | 746000 | 580 | 510 | 401.3 | 815.6 | 698.5 | 1181.1 | － | 13 | 3833 | 524 | 50.17 |
| 1260T10 | 932000 | 540 | 550 | 431.8 | 876.6 | 762 | 1260.9 | － | 13 | 4682 | 7111 |
67.24
|
