Flexible Gear Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | 1020G 10 1020G20 |

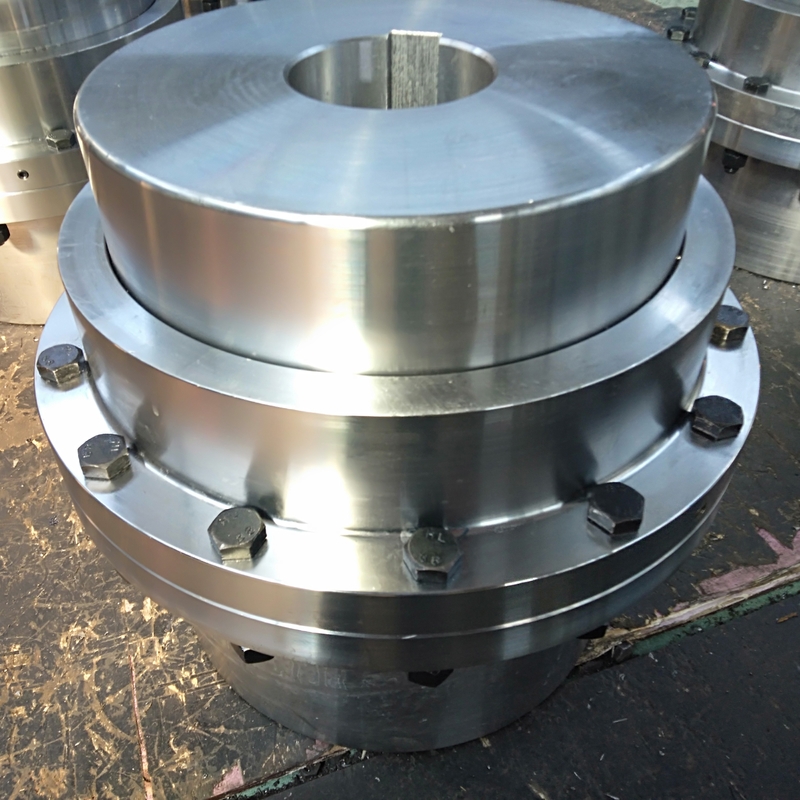

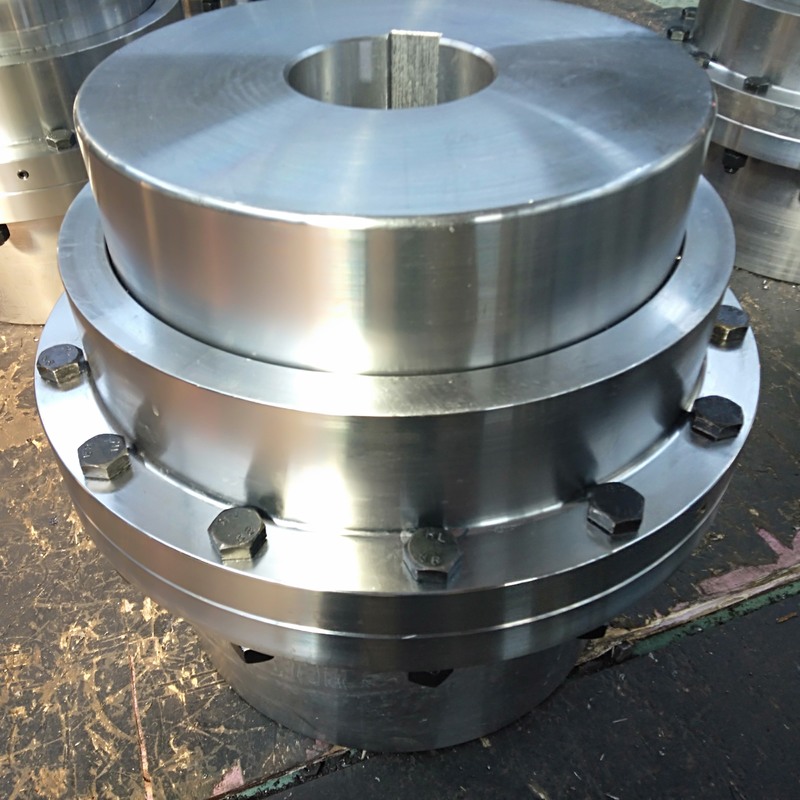

The GIICL drum gear coupling consists of a half coupling with the same number of teeth, an inner ring and an outer flange.The outer teeth are straight teeth and two kinds of drum teeth. The tooth is the outer sphere of the tooth.
(1) GIICL allows greater angular displacement (relative to straight tooth coupling), which can improve tooth contact conditions, improve transmission torque capacity and extend service life.The contact state of the angular displacement along the tooth width direction.
(2) compensation capability of radial, axial and angular deviation and axial deviation with compact structure, small turning radius, large bearing capacity, high transmission efficiency, low noise and long maintenance cycle;
(3) applicable to low-speed and high-load conditions, such as metallurgy, mining, lifting and transportation industries, as well as the driving shaft, general machinery and other machinery of the petrochemical industry.
| Size | Torque Rating (Ib-in) | Allow Speed RPM | Max Bore | Min Bore | CpIgWtWith No Bore (b) | LubeWt (lb) | A | B | C | D | F | H | J | M | GAP | |
| G10 | G20 | |||||||||||||||
| 1010G | 10,080 | 8,000 | 1.875 | 0.50 | 9 | 10 | 0.09 | 4.56 | 3.50 | 1.69 | 2.70 | 3.30 | 0.55 | 1.53 | 2.00 | 0.125 |
| 1015G | 20,790 | 6,500 | 2.375 | 0.75 | 17 | 20 | 0.16 | 6.00 | 4.00 | 1.94 | 3.40 | 4.14 | 0.75 | 1.88 | 2.40 | 0.125 |
| 1020G | 37,800 | 5,600 | 2.875 | 1.00 | 30 | 35 | 0.25 | 7.00 | 5.00 | 2.44 | 4.14 | 4.98 | 0.75 | 2.34 | 3.00 | 0.125 |
| 1025G | 66,150 | 5,000 | 3.625 | 1.25 | 55 | 65 | 0.50 | 8.38 | 6.25 | 3.03 | 5.14 | 6.10 | 0.86 | 2.82 | 3.60 | 0.188 |
| 1030G | 107,100 | 4,400 | 4.125 | 1.50 | 85 | 95 | 0.80 | 9.44 | 7.37 | 3.59 | 6.00 | 7.10 | 0.86 | 3.30 | 4.20 | 0.188 |
| 1035G | 163,800 | 3,900 | 4.875 | 2.00 | 135 | 150 | 1.20 | 11.00 | 8.63 | 4.19 | 7.00 | 8.32 | 1.12 | 3.84 | 5.10 | 0250 |
| 1040G | 270.900 | 3,600 | 5.750 | 2.50 | 195 | 215 | 2.00 | 12.50 | 9.75 | 4.75 | 8.25 | 9.66 | 1.12 | 4.38 | 5.70 | 0250 |
| 1045G | 371,700 | 3,200 | 6.750 | 3.00 | 280 | 300 | 2.30 | 13.62 | 10.93 | 5.31 | 9.25 | 10.79 | 1.12 | 4.84 | 6.50 | 0.312 |
| 1050G | 500,900 | 2,900 | 7.375 | 3.50 | 390 | 420 | 3.90 | 15.31 | 12.37 | 6.03 | 10.00 | 12.04 | 1.50 | 5.54 | 7.20 | 0.312 |
| 1055G | 655,200 | 2,650 | 8,250 | 4.00 | 525 | 550 | 4.90 | 16.75 | 13.56 | 6.62 | 11.00 | 13.16 | 1.50 | 6.22 | 8.00 | 0.312 |
| 1060G | 800100 | 2450 | 9.125 | 4.5 | _ | 675 | 7 | 18 | 15.13 | 7.41 | 12 | 14.41 | 1 | 6.66 | 9 | 0.312 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2:Do you provide samples ? is it free or extra ?
A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q3: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.
Q4:How long is your warranty?
A: Our Warranty is 12 month.
Q5 :Do you have inspection procedures for coupling ?
A:100% self-inspection before packing
Q6. What’s your payment?
A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.
