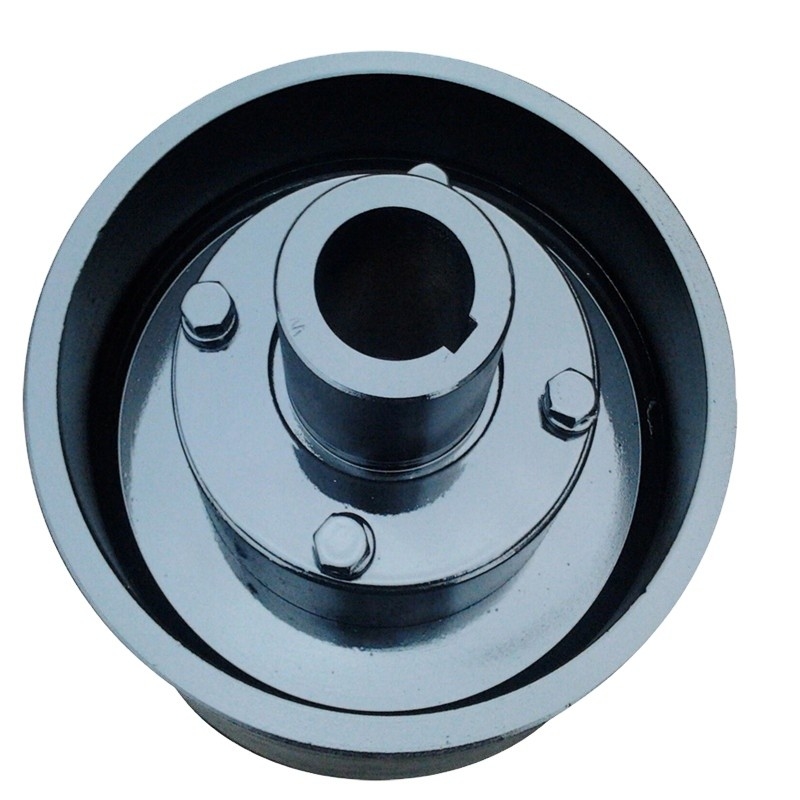

NGCLZ Drum Shape Flexible Gear Coupling With Brake Wheel
  • NGCLZ Drum Shape Flexible Gear Coupling With Brake Wheel
  • NGCLZ Drum Shape Flexible Gear Coupling With Brake Wheel

NGCLZ Drum Shape Flexible Gear Coupling With Brake Wheel

Place of Origin Hebei, China
Brand Name Jude
Certification CE & ISO
Model Number NGCLZ Drum Shape Flexible Gear Coupling
Product Details
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops
Structure:
Gear
Flexible Or Rigid:
Flexible
Material:
Steel
Body Material:
45# Steel
Color:
Custom Requirement
Product Name:
NGCLZ Drum Shape Gear Coupling With Brake Wheel
Application:
Industrial Equipment
Size:
Customized Size
Feature:
Long Operating Life
Product Description

NGCLZ Drum Shape Gear Coupling With Brake Wheel

 Features of drum gear coupling:
1. Strong carrying capacity. Under the same outer diameter of the inner gear sleeve and outer diameter of the coupling, the bearing capacity of the drum gear coupling is on average 15-20% higher than that of the straight gear coupling.
2. Large amount of angular displacement compensation. When the radial displacement is equal to zero, the allowable angular displacement of the spur gear coupling is 1o, while the allowable angular displacement of the drum gear coupling is 1o30', an increase of 50%. Under the same modulus, number of teeth, and tooth width, the angular displacement of the drum teeth is larger than that of the straight teeth.
3. The drum-shaped tooth surface improves the contact conditions of the inner and outer teeth, avoids the disadvantages of the edge extrusion and stress concentration of the straight teeth under the condition of angular displacement, and at the same time improves the friction and wear conditions of the tooth surface and reduces the Noise, long maintenance period.
4. The tooth end of the outer tooth sleeve is in the shape of a horn, which makes the assembly and disassembly of the inner and outer teeth very convenient.
5. The transmission efficiency is as high as 99.7%.

NGCLZ Drum Shape Flexible Gear Coupling With Brake Wheel 0

NGCLZ Drum Shape Flexible Gear Coupling With Brake Wheel 1NGCLZ Drum Shape Flexible Gear Coupling With Brake Wheel 2NGCLZ Drum Shape Flexible Gear Coupling With Brake Wheel 3NGCLZ Drum Shape Flexible Gear Coupling With Brake Wheel 4

About Us

NGCLZ Drum Shape Flexible Gear Coupling With Brake Wheel 5

        Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

        Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

        The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.

NGCLZ Drum Shape Flexible Gear Coupling With Brake Wheel 6

FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory.



Q2:Do you provide samples ? is it free or extra ?

A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.



Q3: How long is your delivery time?

A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.



Q4:How long is your warranty?

A: Our Warranty is 12 month.



Q5 :Do you have inspection procedures for coupling ?

A:100% self-inspection before packing



Q6. What’s your payment?

A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.
