Flexible Gear Coupling
>
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | TGL2/M19 |

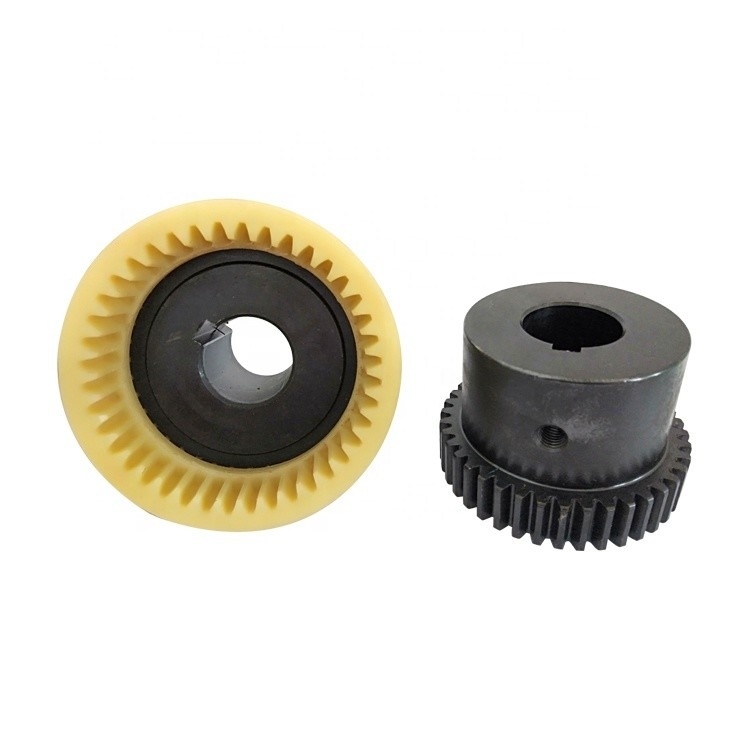

Nylon gear flexible coupling applies to flexible drive shaft,allowing a larger axial radial displacement and angular displacement.
Simple structure
Easy maintenance
Disassembly easy
Low noise
Small loss of transmission power
Long working life
Working temperature is -20～+70℃.
| Size | Rated Torque Tn N • m | Max Speed r/min | Main Size | Bore DIA d | Length L | Rotational inertia kg.m2 | Weight kg | ||||||
| D | D1 | B | S | ||||||||||
| I type | II type | I type | II type | ||||||||||
| TGL1 | M14 | 10 | 10000 | 40 | — | 25 | 38 | — | 4 | 6-14 | 16-27 | 0.264 | 0.2 |
| TGL2 | M19 | 16 | 9000 | 48 | — | 32 | 38 | — | 4 | 8-19 | 20-30 | 0.64 | 0.278 |
| TGL3 | M24 | 31.5 | 8500 | 56 | 58 | 36 | 42 | 52 | 4 | 10-24 | 22-38 | 1.541 | 0.533 |
| TGL4 | M28 | 45 | 8000 | 66 | 70 | 45 | 46 | 56 | 4 | 12-28 | 27-44 | 3.98 | 0.869 |
| TGL6 | M32 | 63 | 7500 | 75 | 85 | 50 | 48 | 58 | 4 | 14-32 | 27-60 | 8.8 | 1.52 |
| TGL6 | M38 | 80 | 6700 | 82 | 90 | 58 | 48 | 58 | 4 | 16-38 | 30-60 | 14.64 | 2.15 |
| TGL7 | M42 | 100 | 6000 | 92 | 100 | 65 | 50 | 60 | 4 | 20-42 | 38-84 | 27.24 | 3.14 |
| TGL8 | M48 | 140 | 5600 | 100 | 100 | 72 | 50 | 60 | 4 | 22-48 | 38-84 | 38.64 | 4.18 |
| TGL9 | M65 | 355 | 4000 | 140 | 140 | 96 | 72 | 85 | 4 | 25-70 | 44-107 | 165.5 | 8.51 |
| TGL10 | M80 | 710 | 3150 | 175 | 175 | 128 | 95 | 95 | 6 | 30-85 | 60-132 | 534.6 | 17.1 |
| TGL11 | M100 | 1250 | 3000 | 210 | 210 | 165 | 102 | 102 | 8 | 40-110 | 84-167 | 1660 | 34.56 |
| TGL12 | M125 | 2500 | 2120 | 270 | 270 | 192 | 135 | 135 | 10 | 50-125 | 84-167 | 4731 | 66.86 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
