Flexible Gear Coupling
>
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | TGL1/M14 |

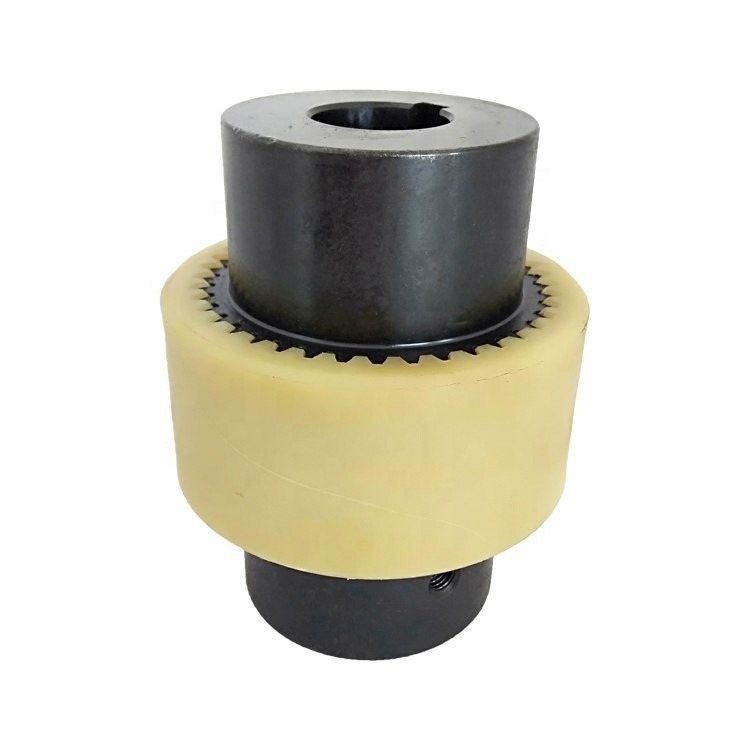

Introduction Of TGL Drum Shape Gear Coupling With Nylon Sleeve
The TGL Drum Shape Gear Coupling With Nylon Sleeve inner ring material is made of MC nylon material, and the outer gear shaft sleeve adopts No. 45 forged steel. It has the advantages of small size, light weight, small rotational inertia, little noise, convenient assembly and disassembly, and no lubrication. It can be applied to small and medium torque conditions, such as fan, pump, lubricating pump, textile machinery and so on.
The TGL Drum Shape Gear Coupling With Nylon Sleeve has the following three structural types: A--- type basic type: B--- type inner ring type: C--- type outer ring type.
| Size | Rated Torque Tn N • m | Max Speed r/min | Main Size | Bore DIA d | Length L | Rotational inertia kg.m2 | Weight kg | ||||||
| D | D1 | B | S | ||||||||||
| I type | II type | I type | II type | ||||||||||
| TGL1 | M14 | 10 | 10000 | 40 | — | 25 | 38 | — | 4 | 6-14 | 16-27 | 0.264 | 0.2 |
| TGL2 | M19 | 16 | 9000 | 48 | — | 32 | 38 | — | 4 | 8-19 | 20-30 | 0.64 | 0.278 |
| TGL3 | M24 | 31.5 | 8500 | 56 | 58 | 36 | 42 | 52 | 4 | 10-24 | 22-38 | 1.541 | 0.533 |
| TGL4 | M28 | 45 | 8000 | 66 | 70 | 45 | 46 | 56 | 4 | 12-28 | 27-44 | 3.98 | 0.869 |
| TGL6 | M32 | 63 | 7500 | 75 | 85 | 50 | 48 | 58 | 4 | 14-32 | 27-60 | 8.8 | 1.52 |
| TGL6 | M38 | 80 | 6700 | 82 | 90 | 58 | 48 | 58 | 4 | 16-38 | 30-60 | 14.64 | 2.15 |
| TGL7 | M42 | 100 | 6000 | 92 | 100 | 65 | 50 | 60 | 4 | 20-42 | 38-84 | 27.24 | 3.14 |
| TGL8 | M48 | 140 | 5600 | 100 | 100 | 72 | 50 | 60 | 4 | 22-48 | 38-84 | 38.64 | 4.18 |
| TGL9 | M65 | 355 | 4000 | 140 | 140 | 96 | 72 | 85 | 4 | 25-70 | 44-107 | 165.5 | 8.51 |
| TGL10 | M80 | 710 | 3150 | 175 | 175 | 128 | 95 | 95 | 6 | 30-85 | 60-132 | 534.6 | 17.1 |
| TGL11 | M100 | 1250 | 3000 | 210 | 210 | 165 | 102 | 102 | 8 | 40-110 | 84-167 | 1660 | 34.56 |
| TGL12 | M125 | 2500 | 2120 | 270 | 270 | 192 | 135 | 135 | 10 | 50-125 | 84-167 | 4731 | 66.86 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
