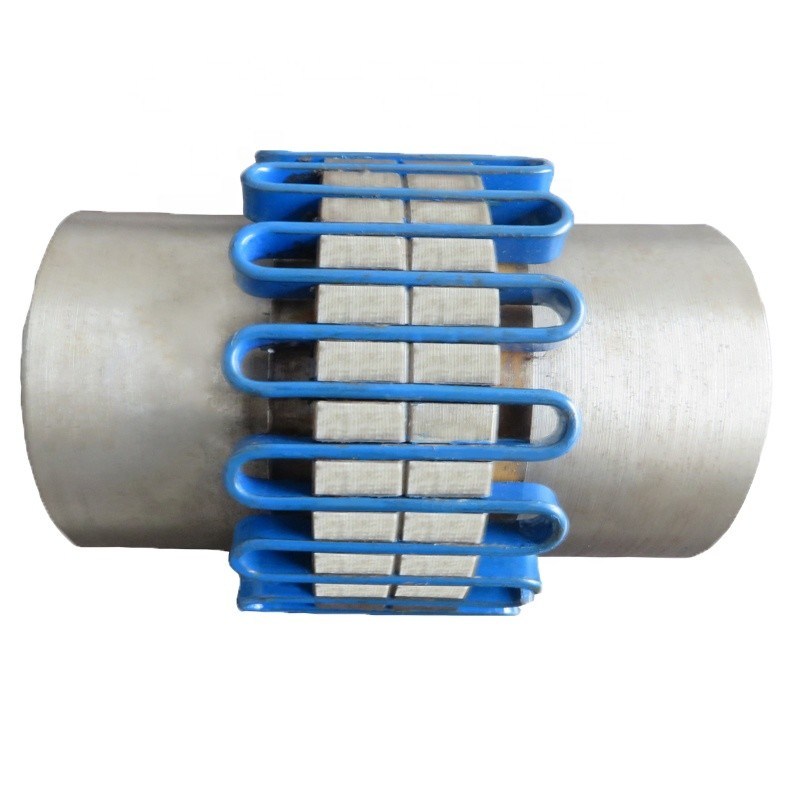

Taper Grid Coupling
>
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | JS |
Product Description
Features of serpentine spring coupling:
1. Good vibration damping, long service life.
2. Large range of variable loads, safe starting.
3. High transmission efficiency and reliable operation.
4. Low noise and good lubrication.
5. Simple structure and convenient installation and disassembly.
6. Less parts, small size and light weight.
7. Large installation deviation is allowed.
| Size | Torque Tn KN.m | Speed (n) r/min | Bore d | Length L | Total lenght L0 | L2 | D | D1 | t | Weight kg | Oil injection kg | Allowable displacement | ||
| Radial y | Axial x | Angular a | ||||||||||||
| JS1 | 0.045 | 4500 | 18-22 | 47 | 97 | 66 | 95 | - | 3 | 1.91 | 0.027 | 0.15 | ±0.3 | 0.076 |
| JS2 | 0.14 | 4500 | 22-35 | 47 | 97 | 68 | 105 | - | 3 | 2.59 | 0.041 | 0.15 | ±0.3 | 0.076 |
| JS3 | 0.224 | 4500 | 25-42 | 50 | 103 | 70 | 115 | - | 3 | 3.36 | 0.054 | 0.15 | ±0.3 | 0.076 |
| JS4 | 0.4 | 4500 | 32-60 | 60 | 123 | 80 | 130 | - | 3 | 5.45 | 0.068 | 0.2 | ±0.3 | 0.1 |
| JS5 | 0.63 | 4350 | 40-56 | 63 | 129 | 92 | 150 | - | 3 | 7.26 | 0.086 | 0.2 | ±0.3 | 0.127 |
| JS6 | 0.9 | 4125 | 48-65 | 76 | 155 | 95 | 160 | - | 3 | 10.4 | 0.113 | 0.2 | ±0.3 | 0.127 |
| JS7 | 1.8 | 3600 | 55-80 | 89 | 181 | 116 | 190 | - | 3 | 17.7 | 0.172 | 0.2 | ±0.3 | 0.15 |
| JS8 | 3.15 | 3600 | 65-95 | 98 | 199 | 122 | 210 | - | 3 | 25.4 | 0.254 | 0.2 | ±0.3 | 0.18 |
| JS9 | 5.6 | 2440 | 75-110 | 120 | 245 | 155 | 250 | - | 5 | 42.2 | 0.426 | 0.25 | ±0.5 | 0.2 |
| JS10 | 8 | 2250 | 85-120 | 127 | 259 | 162 | 270 | - | 5 | 54.5 | 0.508 | 0.25 | ±0.5 | 0.23 |
| JS11 | 12.5 | 2025 | 90-140 | 149 | 304 | 192 | 310 | - | 6 | 81.3 | 0.735 | 0.28 | ±0.6 | 0.25 |
| JS12 | 18 | 1800 | 110-170 | 162 | 330 | 195 | 346 | - | 6 | 121 | 0.908 | 0.28 | ±0.6 | 0.3 |
| JS13 | 25 | 1650 | 120-200 | 184 | 374 | 201 | 384 | - | 6 | 178 | 1.135 | 0.28 | ±0.6 | 0.33 |
| JS14 | 35.5 | 1500 | 140-200 | 183 | 372 | 271 | 450 | 391 | 6 | 234 | 1.952 | 0.3 | ±0.6 | 0.4 |
| JS15 | 50 | 1350 | 160-240 | 198 | 402 | 279 | 500 | 431 | 6 | 317 | 2.815 | 0.3 | ±0.6 | 0.45 |
| JS16 | 63 | 1225 | 180-280 | 216 | 438 | 304 | 566 | 487 | 6 | 448 | 3.496 | 0.3 | ±0.6 | 0.5 |
| JS17 | 90 | 1100 | 200-300 | 239 | 484 | 322 | 630 | 555 | 6 | 620 | 3.76 | 0.38 | ±0.6 | 0.56 |
| JS18 | 125 | 1050 | 240-320 | 260 | 526 | 356 | 675 | 608 | 6 | 776 | 4.4 | 0.38 | ±0.6 | 0.6 |
| JS19 | 160 | 900 | 280-360 | 280 | 566 | 355 | 756 | 660 | 6 | 1058 | 5.63 | 0.38 | ±1.3 | 0.68 |
| JS20 | 224 | 820 | 300-380 | 305 | 623 | 432 | 845 | 751 | 13 | 1426 | 10.5 | 0.46 | ±1.3 | 0.74 |
| JS21 | 315 | 730 | 320-420 | 325 | 663 | 490 | 920 | 822 | 13 | 1787 | 16.1 | 0.46 | ±1.3 | 0.8 |
| JS22 | 400 | 680 | 340-450 | 345 | 703 | 546 | 1000 | 905 | 13 | 2269 | 24.1 | 0.48 | ±1.3 | 0.89 |
| JS23 | 500 | 630 | 360-480 | 368 | 749 | 648 | 1087 | - | 13 | 2951 | 33.8 | 0.48 | ±1.3 | 0.96 |
| JS24 | 630 | 580 | 400-460 | 401 | 815 | 698 | 1180 | - | 13 | 3836 | 50.2 | 0.5 | ±1.3 | 1.07 |
| JS25 | 800 | 540 | 420-500 | 432 | 877 | 762 | 1260 | - | 13 | 4686 | 67.2 | 0.5 | ±1.3 | 1.77 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
