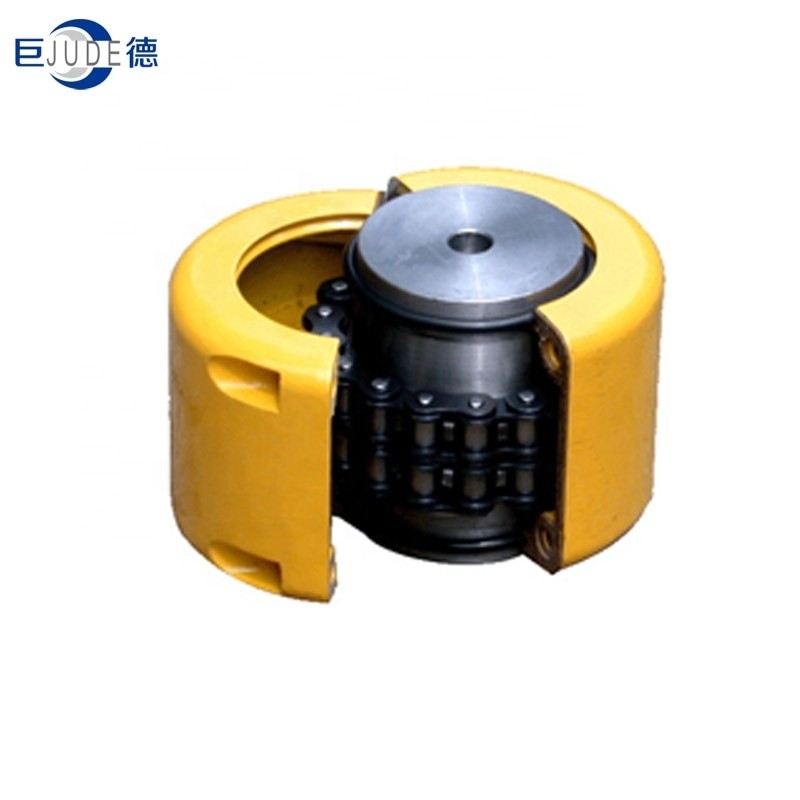

KC 5016 5018 6018 6022 Sprocket Roller Chain Coupling
The chain coupling, composed of two-strand chains and two sprockets, features simple and compact structure, and high flexibility, power transmission capability and durability.
What's more, the chain coupling allows simple connection/disconnection, and the use of the housing enhances safety and durability.
1. The chain coupling is ccomposed of a double row of chains and a pair of coupling sprockets ,which can be connected and disassembled by the chain.
2. This kind of chain coupling has the advantages of compact structure,large torque transfer ,string reliability ,ssafety ,beautiful apearance,simple installation and easy centering .
3. The chain coupling is suitble for many occaions.
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Advertising Company | Structure: | Roller Chain |
|---|---|---|---|
| Flexible Or Rigid: | Flexible | Standard Or Nonstandard: | Standard |
| Material: | Steel | Model: | KC3012-24026 |
| Color: | Custom Requirement | Packing: | Wooden Case |
| Surface Treatment: | Black Oxide | Product Name: | KC 5016 5018 6018 6022 Sprocket Roller Chain Coupling |
| Application: | Industrial Equipment | Body Material: | 45# Steel |
| Size: | Customized Size | MOQ: | 1 Set |
| Custom: | Yes | Port: | Tianjin |
| Size | Torque N.m | Speed rpm | Basic size mm | Inertia kg m2 | Weight kg | ||||||
| dmax | D | D1 | S | L | Dk | Lk | |||||
| KC3812 | 190 | 5000 | 16 | 45 | 25 | 4.9 | 30 | 59 | 61 | 5.6x10-5 | 0.6 |
| KC4012 | 249 | 4800 | 22 | 62 | 35 | 36 | 75 | 2.47X10-4 | 1.0 | ||
| KC4014 | 329 | 4800 | 28 | 69 | 43 | 7.4 | 36 | 84 | 75 | 4.53X10-4 | 1.32 |
| KC4016 | 419 | 4800 | 32 | 77 | 50 | 40 | 92 | 7.90X10-4 | 1.9 | ||
| KC5014 | 620 | 4800 | 35 | 86 | 53 | 101 | 1.37X10-3 | 2.7 | |||
| KC5016 | 761 | 3600 | 40 | 96 | 60 | 9.7 | 45 | 110 | 85 | 2.18X10-3 | 3.4 |
| KC5018 | 989 | 3600 | 45 | 106 | 70 | 122 | 3.53x10-3 | 4.4 | |||
| KC6018 | 1810 | 3300 | 56 | 127 | 85 | 142 | 9.33x10-3 | 7.8 | |||
| KC6020 | 2210 | 2500 | 60 | 139 | 100 | 11.5 | 56 | 158 | 105 | 2.10X10-2 | 10.4 |
| KC6022 | 2610 | 2500 | 71 | 152 | 110 | 168 | 2.16X10-2 | 12.4 | |||
| KC8018 | 3920 | 2000 | 80 | 170 | 115 | 63 | 186 | 3.63 X10-2 | 15.2 | ||
| KC8020 | 4800 | 2000 | 90 | 185 | 121 | 15.2 | 65 | 210 | 130 | 7.20x10-2 | 20.2 |
| KC8022 | 5640 | 1800 | 100 | 203 | 140 | 71 | 220 | 8.00X10-2 | 26.1 | ||
| KC10020 | 8400 | 1800 | 110 | 233 | 160 | 18.8 | 80 | 250 | 148 | 1.61 X10-1 | 39.1 |
| KC12018 | 12700 | 1500 | 125 | 256 | 170 | 90 | 307 | 191 | 2.68 X10-1 | 52.6 | |
| KC 12022 | 18300 | 1250 | 140 | 304 | 210 | 22.7 | 100 | 357 | 5.93 X10-1 | 79.4 | |
| KC16018 | 26400 | 1100 | 160 | 341 | 224 | 30.1 | 112 | 425 | 250 | 1.05 | 110.7 |
| KC 16022 | 38100 | 1000 | 200 | 405 | 280 | 140 | 475 | 2.50 | 191.8 | ||
| KC20018 | 54100 | 800 | 205 | 426 | 294 | 37.5 | 241 | 496 | 300 | 4.60 | 323.4 |
| KC 20022 | 77800 | 600 | 260 | 507 | 374 | 578 | 1.07X10 | 507.8 | |||
| KC24022 | 137000 | 600 | 310 | 608 | 420 | 45.1 | 353 | 650 | 350 | 2.7X10 | 958.5 |
| KC 24026 | 186000 | 500 | 380 | 705 | 520 | 745 | 5.70X10 | 1403.6 | |||
| KC 32022 | 261000 | 430 | 806 | 570 | 60.1 | 400 | 1 .08x102 | 1970 | |||
| KC 40020 | 494000 | 50 | 470 | 932 | 640 | 2.92X1 02 | 3149 | ||||
| KC 40024 | 602000 | 590 | 1093 | 800 | 75.6 | 512 | 4.95X102 | 4724 | |||
| KC 40028 | 717000 | 700 | 1255 | 960 | 9.47X102 | 6620 | |||||
