| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | simplex, duplex and triplex chain |
Fundamental Structure of Solid Bushing & Roller Chain
1. Outsanding longer wear life: Conventional split bushings deform into a barrel shapen when side plates are pressed on, leaving only two-point contact area. Solid Bushing and Roller Chain has extremely cylindrical inside and outside bushing walls resulting in full contact to disperse bearing pressure. Less pressure ensures excellent wear resistance.
2. Up to 2-3 times longer wear life over curled bushings: The curled, split bushings have a seam where tiny space allows lubricant leakage, resulting in shorter wear life. Solid Bushing and Roller has no seam, resulting in lower bearing pressure, allowing the bushings to retain lubrication and resulting in much longer wear life.
3. Reliable performance: Solid Bushing Roller is cold-forge froms steel rod. Cold-forming process also works with the molecular structure (grain) of the steel running lengthwise in the bushings thereby increasing fatigue strength, as well as preventing bushings from breakage.Thus, Solid Bushing Roller Chain improves performance of transmission with minimizing elongation for long period of time.
|
Product
|

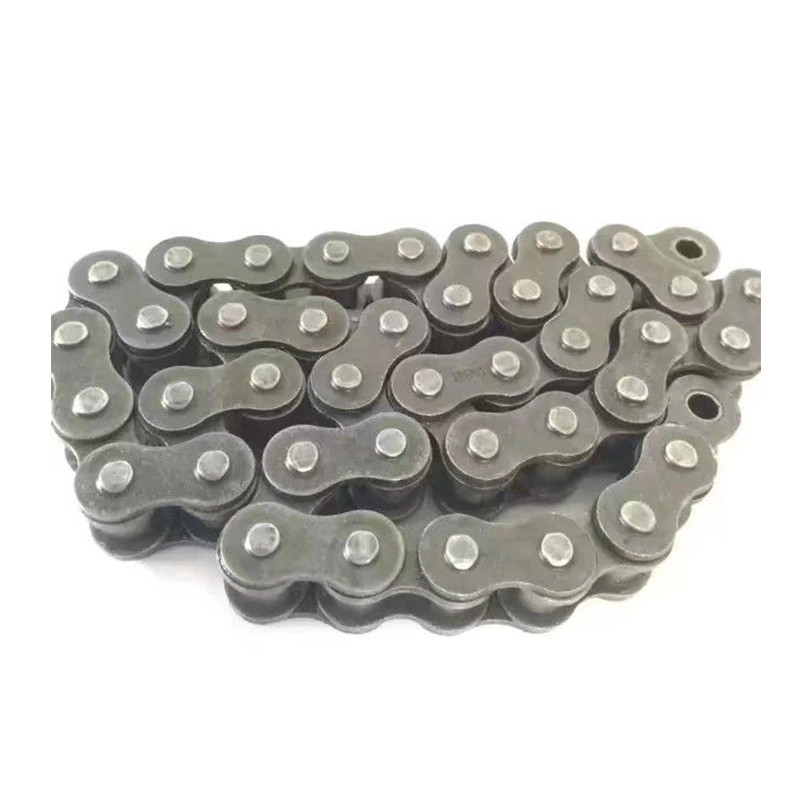

Standard Double Pitch Roller chain
|
||
|
Material
|
40Mn steel,304 stainless steel, 316 stainless steel and 201 stainless steel.
|
||
|
Types
|
Standard chains and special chains, such as A or B series chains, roller chains, driving chains, conveyor chains, hoisting chains, agricultural chains, sprockets, gears, wheels and so on.
|
||
|
Series
|
A series(12.7-50.8mm pitches),B series (9.525-50.8mm pitches)and the heavy series.
|
||
|
Short pitch precision roller chain
|
Simplex Roller Chains&Bushing Chains:
04C-1,06C-1,085-1,08A-1,10A-1,12A-1,16A-1,20A-1,24A-1,28A-1,32A-1,36A-1,40A-1,48A-1
Duplex Roller Chains&Bushing Chains: 04C-2,06C-2,085-2,08A-2,10A-2,12A-2,16A-2,20A-2,24A-2,28A-2,32A-2,36A-2,40A-2,48A-2
Triplex Roller Chains&Bushing Chains: 04C-3,06C-2,085-3,08A-3,10A-3,12A-3,16A-3,20A-3,24A-3,28A-3,32A-3,36A-3,40A-3,48A-3
|
||
|
Chain link type
|
Standard links (without attachment) and non-standard links (with attachment).
A1: One-side,one hole cranked attachments.
A2: One-side,two holes cranked attachments. K1: Both-side,one hole cranked attachments. K2: Both-side,two hole cranked attachments. D1: One-side,an extended pin on every outer link. D3: One-side,two extended pin on every outer link. |
||
|
Our Products Advantage
|
1. Every step from production order to the packing process has a strict quality inspection.
2. We have standard roller chain with 1.5 meters (DIN. ANSI.); Non-standard roller chain (customized acording to customer drawings). 3. Export products with high quality and low price. |
||
