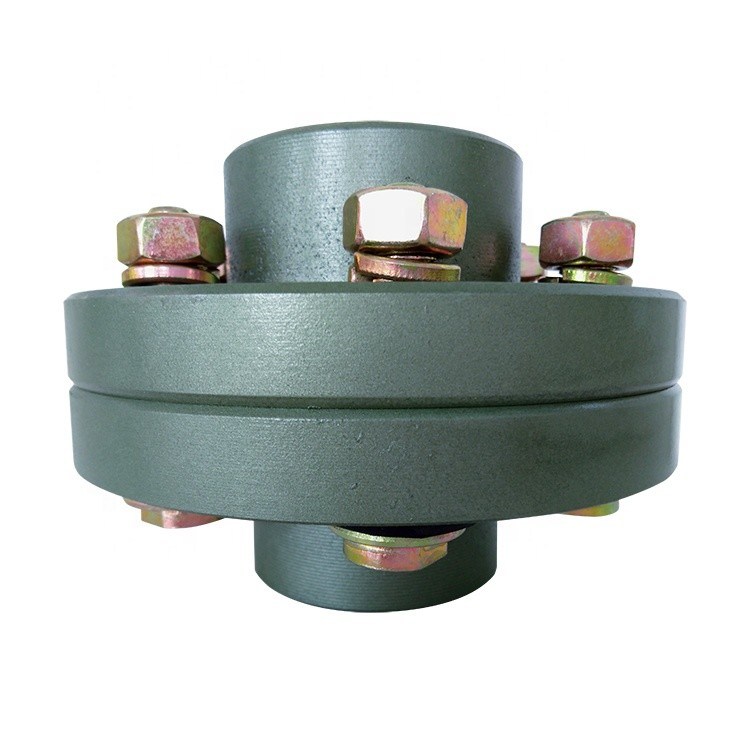

Pin Bush Coupling
>
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | FCL |
Features of FCL elastic pin coupling:
(1) Gearbox is simple in structure, convenient installation, easy replacement, small size, light weight.
(2) if the installation adjustment can keep two relative displacement within the prescribed limits, coupling will have satisfactory performance and long service life.
(3) It can be widely applied to all kinds of medium and small power transmission shafts, such as reducer, crane, compressor, conveyor, textile machine, hoist and ball mill, which are not loaded by motors.
(4) The allowable relative displacement of the elastic sleeve pin couplings:
Radial displacement: 0.2~0.6mm angular displacement: 0 ° 30 '~1° 30'
Use:
FCL couplings are applicable to all ranges of machinery and hydraulics. To be plugged in axially,easy
assembly,maintenance free Applicable from -40oC to+100oC temperature can peak up to 120oC.
Balancing axiad,radial and angular shaft misalignment. Dimension of bored,unavailable on customer's request.
| Type | Max torque | Max speed | D | D1 | d1 | L | C | n-M | Weight |
| N.m | r/min | kg | |||||||
| FCL90 | 4 | 4000 | 90 | 35.5 | 11 | 28 | 3 | 4-M8×50 | 1.7 |
| FCL100 | 10 | 4000 | 100 | 40 | 11 | 35.5 | 3 | 4-M10×56 | 2.3 |
| FCL112 | 16 | 4000 | 112 | 45 | 13 | 40 | 3 | 4-M10×56 | 2.8 |
| FCL125 | 25 | 4000 | 125 | 50 | 13 | 45 | 3 | 4-M12×64 | 4 |
| FCL140 | 50 | 4000 | 140 | 63 | 13 | 50 | 3 | 6-M12×64 | 5.4 |
| FCL160 | 110 | 4000 | 160 | 80 | 15 | 56 | 3 | 8-M12×64 | 8 |
| FCL180 | 157 | 3500 | 180 | 90 | 15 | 63 | 3 | 8-M12×64 | 10.5 |
| FCL200 | 245 | 3200 | 200 | 100 | 21 | 71 | 4 | 8-M20×85 | 16.2 |
| FCL224 | 392 | 2850 | 224 | 112 | 21 | 80 | 4 | 8-M20×85 | 21.3 |
| FCL220 | 618 | 2550 | 250 | 125 | 25 | 90 | 4 | 8-M24×110 | 31.6 |
| FCL280 | 980 | 2300 | 280 | 140 | 34 | 100 | 4 | 8-M24×116 | 44 |
| FCL315 | 1568 | 2050 | 315 | 160 | 41 | 112 | 4 | 10-M24×116 | 57.7 |
| FCL355 | 2450 | 1800 | 355 | 180 | 60 | 125 | 5 | 8-M30×50 | 89.5 |
| FCL400 | 3920 | 1600 | 400 | 200 | 60 | 125 | 5 | 10-M30×150 | 113 |
| FCL450 | 6174 | 1400 | 450 | 224 | 65 | 140 | 5 | 12-M30×150 | 145 |
| FCL560 | 9800 | 1150 | 560 | 250 | 85 | 160 | 5 | 14-M30×150 | 229 |
| FCL630 | 15680 | 1000 | 630 | 280 | 95 | 180 | 5 | 18-M30×150 | 296 |
