Flexible Gear Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | WGP |

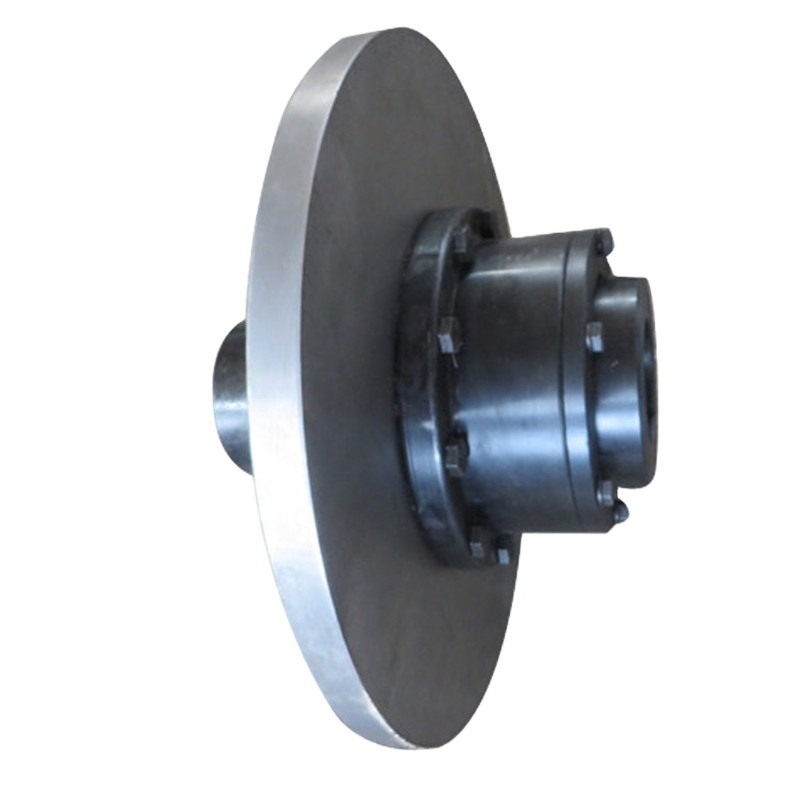

Introduction Of WGP Drum Gear Coupling With Brake Disc
WGP Drum Gear Coupling With Brake Disc has a brake disc, brake disc can rotate speed by controlling the speed to adjust the machine. As shown in figure WGP with brake drum set type gear coupling is divided into I type and II type two forms, the only difference is that the brake disc is different.
WGP Drum Gear Coupling With Brake Disc is an improved type of gear coupling, consisting of inner gear and the same number of teeth of the flange half band coupling parts etc..
WGP Drum Gear Coupling With Brake Disc at work, two have the relative angular displacement, relative axial sliding periodic internal and external gear tooth surface, will inevitably lead to tooth wear and power consumption, therefore, the gear coupling needs to work in good condition and seal. The toothed coupling has small radial size and large load capacity. It is usually used for shafting transmission under low speed and heavy load conditions. The high accuracy and dynamic balancing gear coupling can be used for high speed transmission.
The Coupling Structure & Parameter
| Size | Torque | Speed | Bore Dia | Length | D | D2 | D4 | D0 | B | N | R | F | C | C1 | C2 | |
| Tn | [n] | |||||||||||||||
| N.m | r/min | d1,d2,dz | Y | J1,Z1 | ||||||||||||
| WGP1 | 710 | 7500 | 12.14 | 32 | -- | 122 | 98 | 60 | 315 | 58 | 38 | 2 | 30 | 30 | -- | -- |
| 16.18.19 | 42 | -- | 20 | -- | -- | |||||||||||
| 20.22.24 | 52 | -- | 10 | -- | -- | |||||||||||
| 25.28 | 62 | 44 | 3 | 19 | 18 | |||||||||||
| 30.32.35.38 | 82 | 60 | 3 | 23 | 12 | |||||||||||
| 40.42 | 112 | 84 | 3 | 29 | 12 | |||||||||||
| WGP2 | 1250 | 6700 | 22.24 | 52 | -- | 150 | 118 | 77 | 315 | 68 | 38 | 2.5 | 30 | 20 | -- | -- |
| 25.28 | 62 | -- | 10 | -- | -- | |||||||||||
| 30.32.35.38 | 82 | 60 | 3 | 23 | 16 | |||||||||||
| 40.42.45.48.50.55.56 | 112 | 84 | 3 | 29 | 16 | |||||||||||
| WGP3 | 2500 | 6300 | 22.24 | 52 | -- | 170 | 140 | 90 | 355 | 80 | 49 | 2 | 30 | 33 | -- | -- |
| 25.28 | 62 | -- | 23 | -- | -- | |||||||||||
| 30.32.35.38 | 82 | 60 | 3 | 23 | 16 | |||||||||||
| 40.42.45.48.50.55.56 | 112 | 84 | 3 | 29 | 16 | |||||||||||
| 60.63 | 142 | 107 | 3 | 36 | 16 | |||||||||||
| WGP4 | 4500 | 5600 | 30.32.35.38 | 82 | -- | 200 | 160 | 112 | 90 | 45 | 3 | 30 | 13 | -- | -- | |
| 40.42.45.48.50.55.56 | 112 | 84 | 400 | 3 | 29 | 17 | ||||||||||
| 60.63.65.70.71.75 | 142 | 107 | 450 | 3 | 36 | 17 | ||||||||||
| 80 | 172 | 132 | 500 | 3 | 41 | 17 | ||||||||||
| WGP5 | 7100 | 5300 | 30.32.35.38 | 82 | -- | 225 | 180 | 128 | 100 | 45 | 4 | 30 | 23 | -- | -- | |
| 40.42.45.48.50.55.56 | 112 | 84 | 400 | 3 | 29 | 19 | ||||||||||
| 60.63.65.70.71.75 | 142 | 107 | 450 | 3 | 36 | 19 | ||||||||||
| 80.85.90 | 172 | 132 | 500 | 3 | 41 | 19 | ||||||||||
| WGP6 | 10000 | 5000 | 32.35.38 | 82 | -- | 245 | 200 | 145 | 112 | 44 | 4 | 30 | 35 | -- | -- | |
| 40.42.45.48.50.55.56 | 112 | -- | 450 | 5 | -- | -- | ||||||||||
| 60.63.65.70.71.75 | 142 | 107 | 500 | 5 | 38 | 20 | ||||||||||
| 80.85.90.95 | 172 | 132 | 560 | 5 | 43 | 20 | ||||||||||
| 100 | 212 | 167 | 630 | 5 | 48 | 20 | ||||||||||
| WGP7 | 14000 | 4500 | 32.35.38 | 82 | -- | 272 | 230 | 160 | 122 | 44 | 4 | 30 | 45 | -- | -- | |
| 40.42.45.48.50.55.56 | 112 | -- | 450 | 15 | -- | -- | ||||||||||
| 60.63.65.70.71.75 | 142 | 107 | 500 | 5 | 38 | 20 | ||||||||||
| 80.85.90.95 | 172 | 132 | 560 | 5 | 43 | 20 | ||||||||||
| 100.110 | 212 | 167 | 710 | 5 | 48 | 20 | ||||||||||
| WGP8 | 20000 | 4250 | 55.56 | 112 | -- | 290 | 245 | 176 | 500 | 136 | 44 | 5 | 30 | 29 | -- | -- |
| 60.63.65.70.71.75 | 142 | 107 | 560 | 5 | 38 | 34 | ||||||||||
| 80.85.90.96 | 172 | 132 | 630 | 5 | 43 | 20 | ||||||||||
| 100.110.120.125 | 212 | 167 | 710 | 5 | 48 | 38 | ||||||||||
| WGP9 | 25000 | 4000 | 65.70.71.75 | 142 | 107 | 315 | 265 | 190 | 500 | 140 | 58 | 5 | 30 | 5 | 38 | 28 |
| 80.85.90.95 | 172 | 132 | 630 | 5 | 43 | 28 | ||||||||||
| 100.110.120.125 | 212 | 167 | 710 | 5 | 48 | 28 | ||||||||||
| 130.140 | 252 | 202 | 800 | 5 | 53 | 28 | ||||||||||
| WGP10 | 40000 | 3550 | 75 | 142 | -- | 355 | 300 | 225 | 165 | 58 | 6 | 30 | 28 | -- | -- | |
| 80.85.90.95 | 172 | 132 | 630 | 5 | 43 | 38 | ||||||||||
| 100.110.120.125 | 212 | 167 | 710 | 5 | 48 | 28 | ||||||||||
| 130.140.150 | 252 | 202 | 800 | 5 | 53 | 28 | ||||||||||
| 160 | 302 | 242 | 5 | 63 | 28 | |||||||||||
| WGP11 | 56000 | 3000 | 85.90.95 | 172 | -- | 412 | 345 | 256 | 180 | 58 | 6 | 40 | 15 | -- | -- | |
| 100.110.120.125 | 212 | 167 | 710 | 8 | 51 | 32 | ||||||||||
| 130.140.150 | 252 | 202 | 800 | 8 | 56 | 32 | ||||||||||
| 160.170.180 | 302 | 242 | 900 | 8 | 56 | 32 | ||||||||||
| WGP12 | 80000 | 2800 | 120.125 | 212 | 167 | 440 | 375 | 288 | 210 | 58 | 7 | 40 | 8 | 51 | 45 | |
| 130.140.150 | 252 | 202 | 710 | 8 | 56 | 32 | ||||||||||
| 160.170.180 | 302 | 242 | 800 | 8 | 66 | 32 | ||||||||||
| 190.200 | 352 | 282 | 900 | 8 | 76 | 32 | ||||||||||
| WGP13 | 112000 | 2500 | 145.150 | 252 | 202 | 490 | 425 | 320 | 235 | 58 | 8 | 50 | 8 | 56 | 38 | |
| 160.170.180 | 302 | 242 | 800 | 8 | 66 | 32 | ||||||||||
| 190.200.220 | 352 | 282 | 900 | 8 | 76 | 32 | ||||||||||
| WGP14 | 160000 | 2300 | 160.170.180 | 302 | 242 | 545 | 462 | 362 | 265 | 65 | 9 | 50 | 10 | 68 | 32 | |
| 190.200.220 | 352 | 282 | 800 | 10 | 78 | 32 | ||||||||||
| 240.250.260 | 410 | 330 | 900 | 10 | -- | 10 | ||||||||||
The Brake Disc Specifications
| WGP Brake Disc Size unit:mm | |||||||||
| Dia | Thickness | Height | D5 max | Weight kg | Inertia kg.m² | ||||
| D0 | T | k | S | Ⅰ | Ⅱ | Ⅰ | Ⅱ | Ⅰ | Ⅱ |
| 315 | 15 | 10 | 42 | 180 | 155 | 8.5 | 6.7 | 0.116 | 0.11 |
| 355 | 15 | 10 | 54 | 200 | 175 | 11.4 | 9.9 | 0.192 | 0.178 |
| 400 | 15 | 14 | 54 | 255 | 230 | 15.2 | 12.4 | 0.32 | 0.287 |
| 450 | 15 | 16 | 54 | 305 | 280 | 19.7 | 15.6 | 0.55 | 0.462 |
| 500 | 15 | 18 | 54 | 325 | 295 | 25 | 20 | 0.83 | 0.712 |
| 560 | 15 | 18 | 54 | 350 | 320 | 30.7 | 25.6 | 1.28 | 1.127 |
| 630 | 15 | 20 | 54 | 400 | 360 | 38.8 | 33 | 2.06 | 1.826 |
| 710 | 15 | 20 | 54 | 480 | 450 | 46.5 | 39.4 | 3.32 | 2.912 |
| 800 | 15 | 24 | 70 | 540 | 500 | 67.8 | 52.7 | 5.87 | 4.81 |
| 900 | 15 | 24 | 70 | 600 | 560 | 86.6 | 70.3 | 9.3 | 7.852 |
| 1000 | 15 | 30 | 80 | 620 | 560 | 128.8 | 115.1 | 17.4 | 15.65 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
