| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |

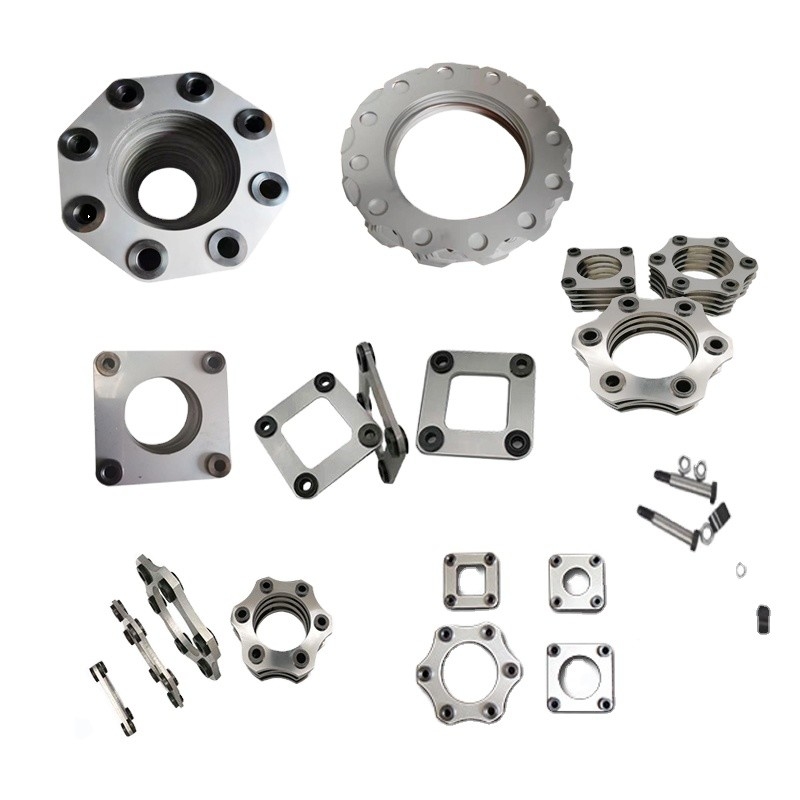

Industry disc Stainless Steel Diaphragm For Flexible Coupling-JUDE diaphragm custom size
1. One Piece metallic spring coupling
2. Zero backlash
3. Absorption of parallel, angular misalignment and shaft end-play by spring action
4. Identical clockwise and anticlockwise rotational characteristics
5. Setscrew type or Clamp Type
6. Material: Aluminum Alloy or Stainless steel or other materials per customers' request.
7. Anti-corrsion,widely used in medical science ,chemistry
8. High flexibilty
9. For servomotor stepmotor
|
Material Available
|
Stainless Steel:SS201,SS301, SS303, SS304, SS316, SS416 etc.
35CrMo 40CrMo42 CrMo Steel:mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# Aluminum:AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc. Iron:A36, 45#, 1213, 12L14, 1215 etc. Plastic:ABS, PC, PE, POM, Delrin, Nylon, , PP,PEI, Peek or as customer required . |
|
CNC Turning
|
φ0.5 - φ300 * 750 mm,+/-0.005 mm
|
|
CNC Milling
|
510 * 1020 * 500 mm(max),+/-0.001 mm-+/-0.005 mm
|
|
Surface Finish
|
Aluminum:Clear Anodized,Color Anodized,Sandblast Anodized,Chemical Film,Brushing,Polishing,Chroming.
Stainless Steel:Polishing,Passivating,Sandblasting,Laser engraving. Steel:Zinc plating,Oxide black,Nickel plating,Chrome plating,Carburized, Heat treatment,Powder Coated. Plastic:Painting,Chrome plating,polishing,Sandblast,Laser engraving. |
|
Drawing Format
|
IGS,STP,X_T ,DXF,DWG , Pro/E, PDF
|
|
Test Equipment
|
Measurement instrument, Projector, CMM, Altimeter, Micrometer, Thread Gages, Calipers, Pin Gauge etc.
|
|
