| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | MT |

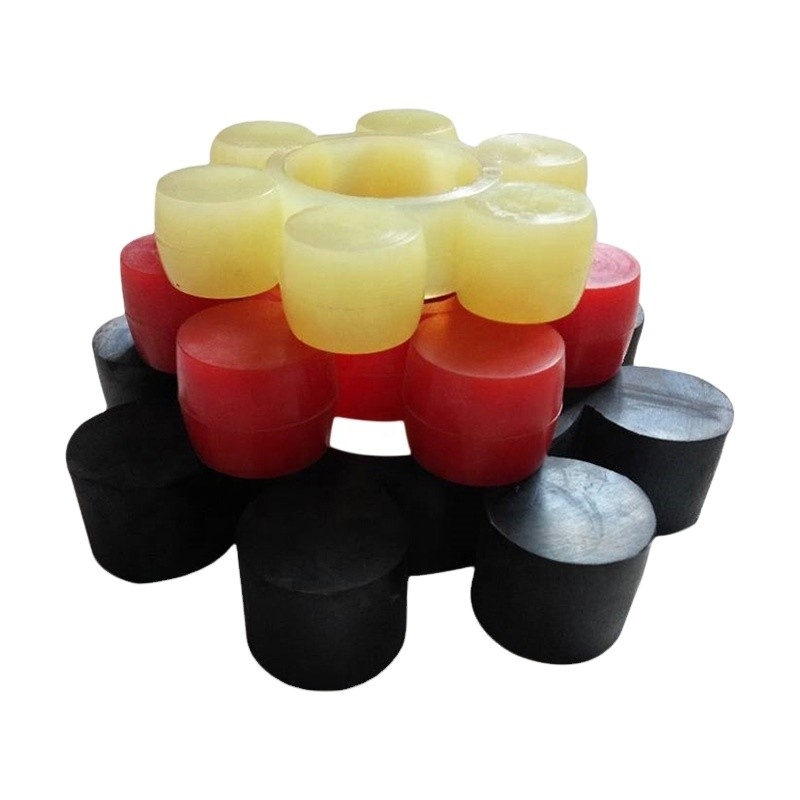

Rubber Element For Flexible Pump Shaft Coupling are all advanced shaft connection devices. They are widely used for drive shaft end connection of large-scale equipment such as steel rolling, lifting, forging and oil and other kinds of mechanical equipment.
Torque: 22.4~2500NM
Wear: < 0.05cm3 / 1.61km
Product hardness: SHA98°
Use of temperature: -40~100℃
| Name | coupling Rubber Spider |
| Material | Silicone, EPDM, NR, NBR, FKM, SBR, HNBR, IIR, CR FFKM etc silicon,fluorine,NBR,FPM,EPDM,SILCONE ACM,HNBR |
| Size | According to the drawing or sample |
| Color | According to your requirement (Panton color card) |
| Application | Parts are used on vehicles, printing machines, food processing machines, textile machines, electronic machines, etc. |
| Inspection instruments | Excellent chemical and physical property, excellent oil- resistance, high temperature stability, etc. |
| Package | Inner plastic bag/outside carton/wooden pallets/ or any other special package as per customer's requirements |
| Final inspection | We'll make a final QC 100% inspection to make sure a good quality before delivery |
| model | specification | |||
| Outer diameter (D) | Inner hole diameter (D) | Thickness (n) | Spider | |
| MT1 | 48 | 19 | 12 | 4 |
| MT2 | 58 | 16 | ||
| MT3 | 68 | 28 | 18 | 6 |
| MT4 | 82 | 34 | ||
| MT5 | 100 | 42 | 20 | |
| MT6 | 122 | 52 | 25 | |
| MT7 | 140 | 65 | 30 | |
| MT8 | 166 | 90 | 8 | |
| MT9 | 196 | 100 | 35 | |
| MT10 | 225 | 115 | 10 | |
| MT11 | 255 | 140 | 45 | |
| MT12 | 295 | 170 | 50 | |
| MT13 | 356 | 215 | 55 | 12 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
