Flexible Jaw Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | L110 |

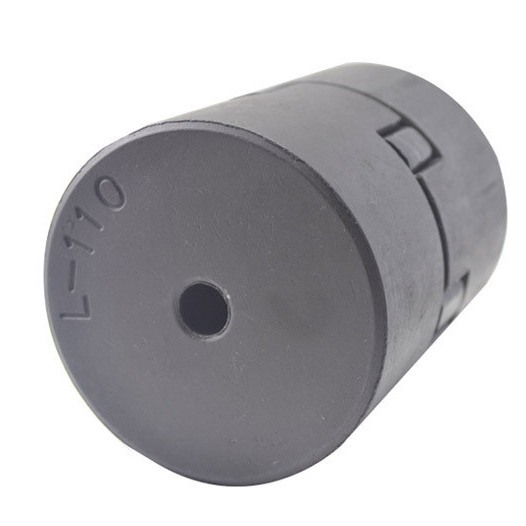

High Quality L110 Standard L Type Flexible PU Spider Jaw Shaft Coupling
Features of L curved jaw coupling:
1. Easy of inspection,easy maintenance
2. Can absorb vibration,parallel,angular and axial misalignments
3. Identical clockwise and anticlockwise rotational charateristics
4. Both ends material is iron, intermediate for rubber materials
5. Simple configuration, setscrew type,low price
6. Hole can be self-processing,easy facilitate
7. For step motor,screw, machine positioning system
Lovejoy standard L type Jaw spider coupling parameters and data :
| Size | Type | Standard bore | Bore metric | Bore inch | Dimensions | Torgue | Rotational speed rpm | Mass kg | ||||||
| Min | Max | Min | Max | A | B | C | D | E | needed Nm | |||||
| L035 | 1 | 3 | 3 | 8 | 1/8" | 3/8" | 16 | 20.2 | 7.8 | 6.6 | － | 0.5 | 30.000 | 0.03 |
| L050 | 1 | 6 | 5 | 15 | 3/16" | 5/8" | 28 | 43 | 12 | 15.6 | － | 3 | 17.000 | 0.13 |
| L070 | 1 | 9 | 7 | 19 | 3/16" | 3/4" | 35 | 50.7 | 12.7 | 19 | － | 5 | 13.000 | 0.24 |
| L075 | 1 | 9 | 9 | 25 | 3/16" | 1" | 45 | 55 | 12.7 | 21 | － | 10 | 10.000 | 0.40 |
| L090 | 1 | 9 | 9 | 28 | 3/16" | 1 1/8" | 54 | 55 | 12.7 | 21 | － | 16 | 9.000 | 0.68 |
| L095 | 1 | 9 | 9 | 28 | 3/8" | 1 1/8" | 54 | 64 | 12.7 | 25.5 | － | 22 | 9.000 | 0.71 |
| L099 | 1 | 12 | 12 | 35 | 7/16" | 1 3/8" | 65 | 72.5 | 19 | 27 | － | 45 | 7.000 | 1.22 |
| L100 | 1 | 12 | 12 | 35 | 7/16" | 1 3/8" | 65 | 88.5 | 19 | 35 | － | 50 | 7.000 | 1.40 |
| L110 | 1 | 15 | 15 | 48 | 1/2" | 1 7/8" | 84 | 108 | 22 | 43 | － | 90 | 5.000 | 3.00 |
| L150 | 1 | 15 | 15 | 48 | 5/8" | 1 7/8" | 96 | 115.4 | 25.4 | 45 | － | 150 | 5.000 | 5.00 |
| L190 | 2 | 19 | 19 | 55 | 5/8" | 2 1/4" | 115 | 133.4 | 25.4 | 54 | 102 | 200 | 4.200 | 7.60 |
| L225 | 2 | 19 | 19 | 65 | 3/4" | 2 5/8" | 127 | 153.4 | 26.4 | 64 | 108 | 300 | 4.200 | 9.00 |
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2:Do you provide samples ? is it free or extra ?
A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q3: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.
Q4:How long is your warranty?
A: Our Warranty is 12 month.
Q5 :Do you have inspection procedures for coupling ?
A:100% self-inspection before packing
Q6. What’s your payment?
A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.
