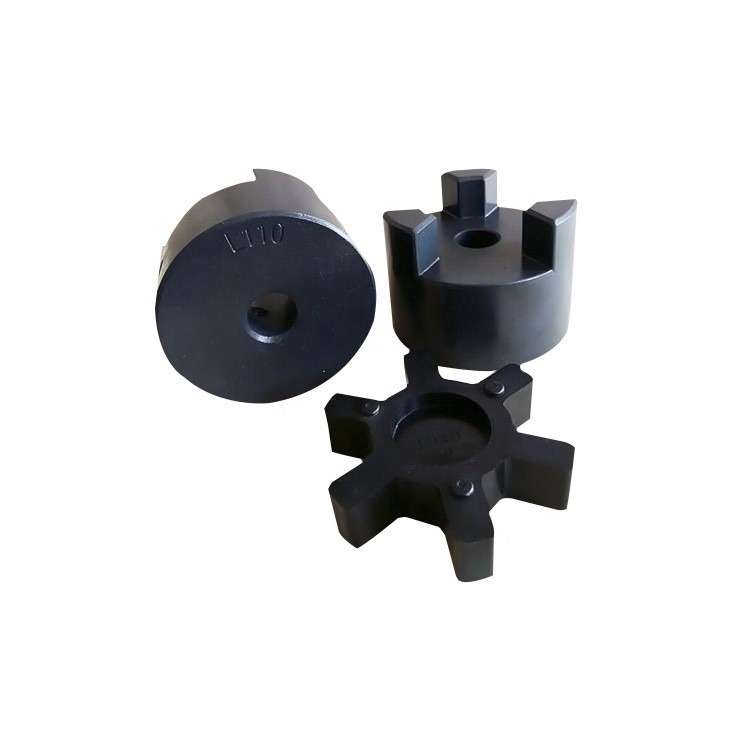

L075 high elasticity rubber spider coupling
Features of L curved jaw coupling:
1.Easy of inspection,easy maintenance
2.Can absorb vibration,parallel,angular and axial misalignments
3.Identical clockwise and anticlockwise rotational charateristics
4.Both ends material is iron, intermediate for rubber materials
5.Simple configuration, setscrew type,low price
6.Hole can be self-processing,easy facilitate
7.For step motor,screw, machine positioning system
|
Lovejoy standard L type Jaw spider coupling parameters and data :
| Size | Type | Standard bore | Bore metric | Bore inch | Dimensions | Torgue | Rotational speed rpm | Mass kg | ||||||
| Min | Max | Min | Max | A | B | C | D | E | needed Nm | |||||
| L035 | 1 | 3 | 3 | 8 | 1/8" | 3/8" | 16 | 20.2 | 7.8 | 6.6 | － | 0.5 | 30.000 | 0.03 |
| L050 | 1 | 6 | 5 | 15 | 3/16" | 5/8" | 28 | 43 | 12 | 15.6 | － | 3 | 17.000 | 0.13 |
| L070 | 1 | 9 | 7 | 19 | 3/16" | 3/4" | 35 | 50.7 | 12.7 | 19 | － | 5 | 13.000 | 0.24 |
| L075 | 1 | 9 | 9 | 25 | 3/16" | 1" | 45 | 55 | 12.7 | 21 | － | 10 | 10.000 | 0.40 |
| L090 | 1 | 9 | 9 | 28 | 3/16" | 1 1/8" | 54 | 55 | 12.7 | 21 | － | 16 | 9.000 | 0.68 |
| L095 | 1 | 9 | 9 | 28 | 3/8" | 1 1/8" | 54 | 64 | 12.7 | 25.5 | － | 22 | 9.000 | 0.71 |
| L099 | 1 | 12 | 12 | 35 | 7/16" | 1 3/8" | 65 | 72.5 | 19 | 27 | － | 45 | 7.000 | 1.22 |
| L100 | 1 | 12 | 12 | 35 | 7/16" | 1 3/8" | 65 | 88.5 | 19 | 35 | － | 50 | 7.000 | 1.40 |
| L110 | 1 | 15 | 15 | 48 | 1/2" | 1 7/8" | 84 | 108 | 22 | 43 | － | 90 | 5.000 | 3.00 |
| L150 | 1 | 15 | 15 | 48 | 5/8" | 1 7/8" | 96 | 115.4 | 25.4 | 45 | － | 150 | 5.000 | 5.00 |
| L190 | 2 | 19 | 19 | 55 | 5/8" | 2 1/4" | 115 | 133.4 | 25.4 | 54 | 102 | 200 | 4.200 | 7.60 |
| L225 | 2 | 19 | 19 | 65 | 3/4" | 2 5/8" | 127 | 153.4 | 26.4 | 64 | 108 | 300 | 4.200 | 9.00 |
