Flexible Jaw Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | L095 |

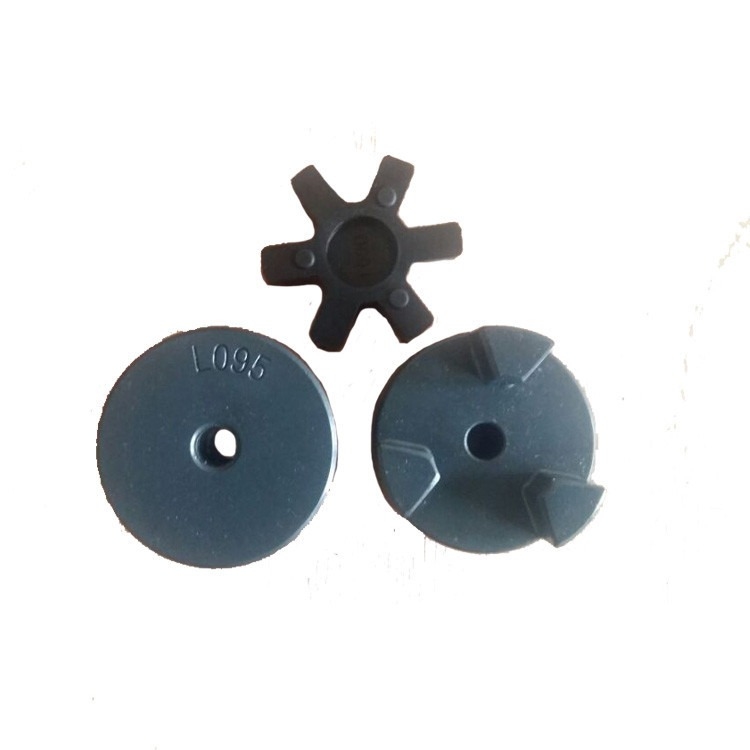

L095 jaw insert flexible spider moter jaw rubber shaft coupling
Features of L curved jaw coupling:
Use a flex coupling to direct-mount your engine to pump. Oil-resistant synthetic rubber inserts are used between the coupling halves to provide an equalized cushioned drive. When ordering, get one side to fit the motor and the other side to fit the pump shaft dia. Order two halves plus insert for complete coupling. When mounting, do not pound on the end of your pump shaft.
Lovejoy standard L type Jaw spider coupling parameters and data :
| Size | Type | Standard bore | Bore metric | Bore inch | Dimensions | Torgue | Rotational speed rpm | Mass kg | ||||||
| Min | Max | Min | Max | A | B | C | D | E | needed Nm | |||||
| L035 | 1 | 3 | 3 | 8 | 1/8" | 3/8" | 16 | 20.2 | 7.8 | 6.6 | － | 0.5 | 30.000 | 0.03 |
| L050 | 1 | 6 | 5 | 15 | 3/16" | 5/8" | 28 | 43 | 12 | 15.6 | － | 3 | 17.000 | 0.13 |
| L070 | 1 | 9 | 7 | 19 | 3/16" | 3/4" | 35 | 50.7 | 12.7 | 19 | － | 5 | 13.000 | 0.24 |
| L075 | 1 | 9 | 9 | 25 | 3/16" | 1" | 45 | 55 | 12.7 | 21 | － | 10 | 10.000 | 0.40 |
| L090 | 1 | 9 | 9 | 28 | 3/16" | 1 1/8" | 54 | 55 | 12.7 | 21 | － | 16 | 9.000 | 0.68 |
| L095 | 1 | 9 | 9 | 28 | 3/8" | 1 1/8" | 54 | 64 | 12.7 | 25.5 | － | 22 | 9.000 | 0.71 |
| L099 | 1 | 12 | 12 | 35 | 7/16" | 1 3/8" | 65 | 72.5 | 19 | 27 | － | 45 | 7.000 | 1.22 |
| L100 | 1 | 12 | 12 | 35 | 7/16" | 1 3/8" | 65 | 88.5 | 19 | 35 | － | 50 | 7.000 | 1.40 |
| L110 | 1 | 15 | 15 | 48 | 1/2" | 1 7/8" | 84 | 108 | 22 | 43 | － | 90 | 5.000 | 3.00 |
| L150 | 1 | 15 | 15 | 48 | 5/8" | 1 7/8" | 96 | 115.4 | 25.4 | 45 | － | 150 | 5.000 | 5.00 |
| L190 | 2 | 19 | 19 | 55 | 5/8" | 2 1/4" | 115 | 133.4 | 25.4 | 54 | 102 | 200 | 4.200 | 7.60 |
| L225 | 2 | 19 | 19 | 65 | 3/4" | 2 5/8" | 127 | 153.4 | 26.4 | 64 | 108 | 300 | 4.200 | 9.00 |
